LED освещение - COB, Двигатели, Модули, Ленты
| Фото: | Мфр. Часть # | Доступность | Цена | Количество | Технические | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30A2001-C-03MOD LED ARRAY WM WHITE 3000K Bridgelux |
3,235 | - |
RFQ |
Технические |
Tray | Décor Series™ Class A Vero® 13 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1171lm (Typ) | 500mA | 85°C | 31.5V | 74 lm/W | - | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-40A2001-C-03MOD LED ARRAY NEU WHITE 4000K Bridgelux |
3,069 | - |
RFQ |
Технические |
Tray | Décor Series™ Class A Vero® 13 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1537lm (Typ) | 500mA | 25°C | 31.5V | 98 lm/W | - | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

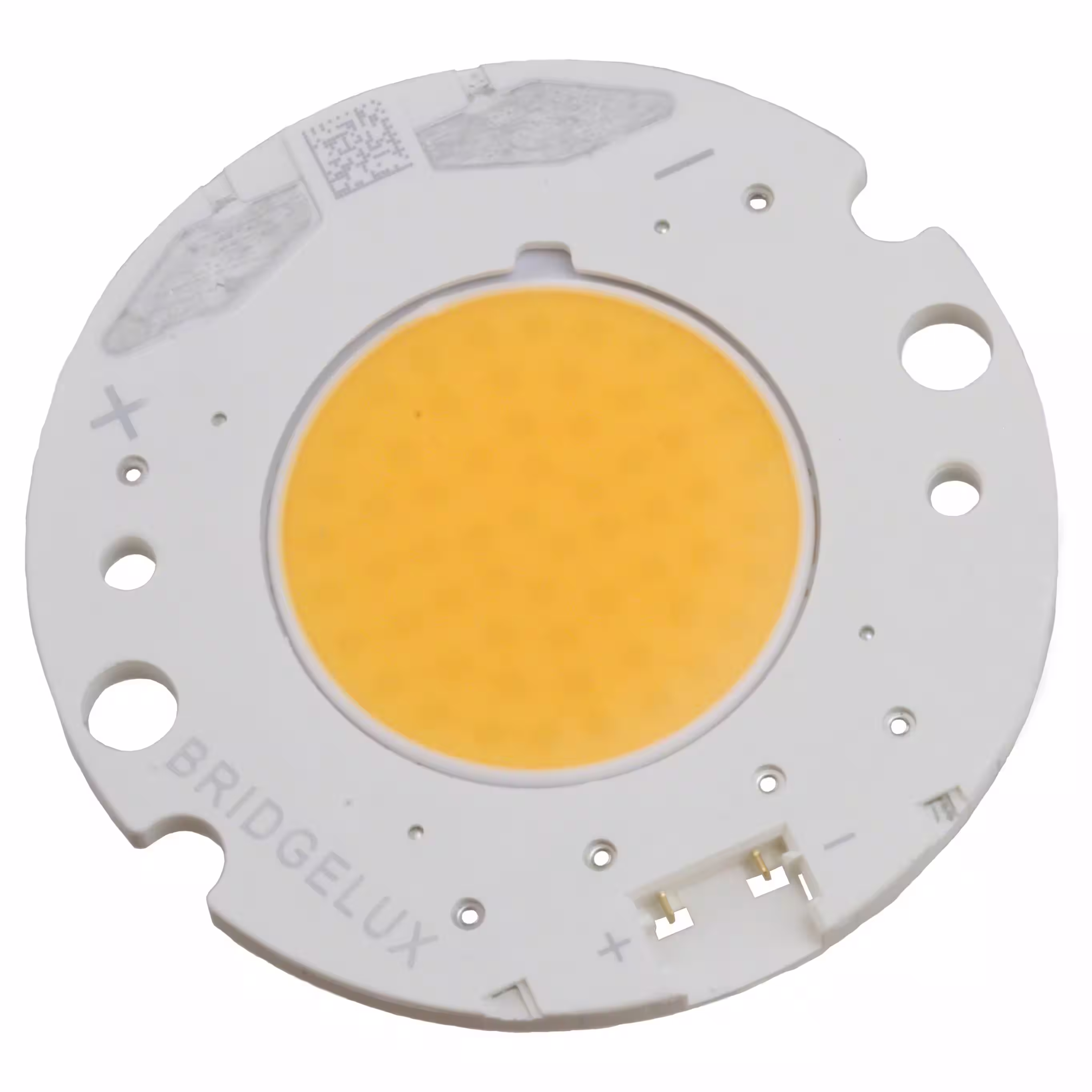

BXRC-30A4001-F-03MOD LED ARRAY WM WHITE 3000K Bridgelux |
3,641 | - |
RFQ |
Технические |
Tray | Décor Series™ Class A Vero® 18 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2249lm (Typ) | 1.05A | 25°C | 28.8V | 74 lm/W | - | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
BXRC-35G4000-F-03LED MOD COB 3500K 90CRI 4KLM Bridgelux |
3,265 | - |
RFQ |
Технические |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3388lm (Typ) | 1.05A | 25°C | 29.5V | 109 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRC-35G10K0-L-03LED MOD COB 3500K 90CRI 10KLM Bridgelux |
2,168 | - |
RFQ |
Технические |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | - | 2.1A | 25°C | 38.6V | - | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-50E2000-C-24LED ARRAY 2000LM COOL WHITE COB Bridgelux |
3,317 | - |
RFQ |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2252lm (Typ) | 500mA | 25°C | 32.3V | 139 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | |
|
|
BXRC-50E4000-F-24LED ARRAY 4000LM COOL WHITE COB Bridgelux |
3,705 | - |
RFQ |
Технические |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4305lm (Typ) | 1.05A | 25°C | 29.5V | 139 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-50G2000-C-24LED ARRAY 2000LM COOL WHITE COB Bridgelux |
2,576 | - |
RFQ |
Технические |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2015lm (Typ) | 500mA | 25°C | 32.3V | 125 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-56G10K0-L-24LED ARRAY 10000LM COOL WHITE COB Bridgelux |
3,765 | - |
RFQ |
Технические |
Tray | Décor Series™ Specialty Vero® 29 | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 8830lm (Typ) | 2.1A | 85°C | 36.8V | 114 lm/W | 4.2A | 90 (Typ) | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-27E1000-B-23LED ARRAY 1000LM WARM WHITE COB Bridgelux |
3,335 | - |
RFQ |
Технические |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1161lm (Typ) | 350mA | 25°C | 26.5V | 125 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-27E10K0-L-23LED ARRAY 10000LM WARM WHITE COB Bridgelux |
3,689 | - |
RFQ |
Технические |
Tray | Vero® 29 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 10113lm (Typ) | 2.1A | 25°C | 38V | 127 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-27E2000-C-23LED ARRAY 2000LM WARM WHITE COB Bridgelux |
2,438 | - |
RFQ |
Технические |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2039lm (Typ) | 500mA | 25°C | 32.3V | 126 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27E4000-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
3,126 | - |
RFQ |
Технические |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 3961lm (Typ) | 1.05A | 25°C | 29.5V | 128 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-27G1000-B-23LED ARRAY 1000LM WARM WHITE COB Bridgelux |
2,313 | - |
RFQ |
Технические |
Tray | Vero® 10 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 982lm (Typ) | 350mA | 25°C | 26.5V | 106 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-27G2000-C-23LED ARRAY 2000LM WARM WHITE COB Bridgelux |
2,187 | - |
RFQ |
Технические |
Tray | Vero® 13 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1696lm (Typ) | 500mA | 25°C | 32.3V | 105 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27G4000-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
3,996 | - |
RFQ |
Технические |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 3224lm (Typ) | 1.05A | 25°C | 29.5V | 104 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-27H1000-B-23LED ARRAY 1000LM WARM WHITE COB Bridgelux |
3,421 | - |
RFQ |
Технические |
Tray | Décor Series™ Ultra Vero® 10 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 632lm (Typ) | 350mA | 85°C | 25.8V | 70 lm/W | 1.05A | 97 (Typ) | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-27H2000-C-23LED ARRAY 2000LM WARM WHITE COB Bridgelux |
3,116 | - |
RFQ |
Технические |
Tray | Décor Series™ Ultra Vero® 13 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1105lm (Typ) | 500mA | 85°C | 31.5V | 70 lm/W | 1.5A | 97 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-30A2001-C-23LED ARRAY 2000LM WARM WHITE COB Bridgelux |
3,318 | - |
RFQ |
Технические |
Tray | Décor Series™ Class A Vero® 13 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1500lm (Typ) | 500mA | 25°C | 32.3V | 93 lm/W | 1.05A | 93 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|

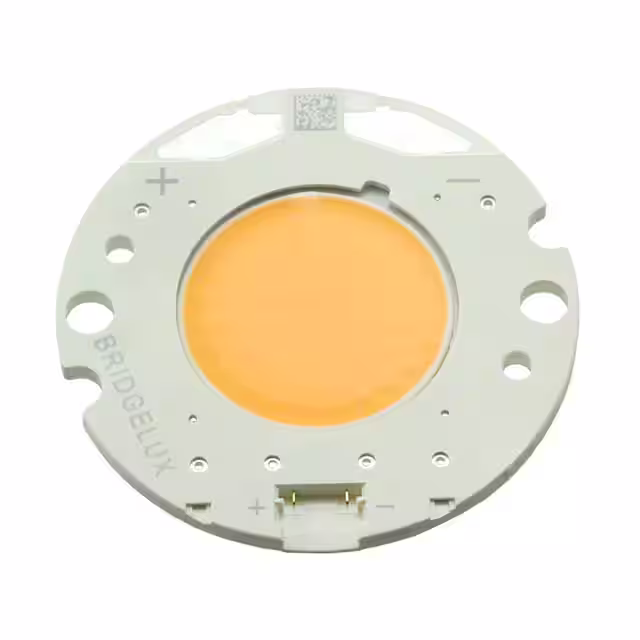

BXRC-30A4001-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
3,243 | - |
RFQ |
Технические |
Tray | Décor Series™ Class A Vero® 18 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2897lm (Typ) | 1.05A | 25°C | 29.5V | 94 lm/W | 2.1A | 93 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
