| Фото: | Мфр. Часть # | Доступность | Цена | Количество | Технические | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-50C4001-B-74LED COB V18 5000K SQUARE Bridgelux |
919 | - |
RFQ |
Технические |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 4963lm (Typ) | 900mA | 85°C | 34V | 162 lm/W | 1.8A | 70 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
BXRE-30G20H0-C-83V13C WARM WHITE LED ARRAY Bridgelux |
500 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2533lm (Typ) | 500mA | 25°C | 33.4V | 152 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-27G2000-C-83V13C WARM WHITE LED ARRAY Bridgelux |
488 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2314lm (Typ) | 500mA | 25°C | 33.4V | 139 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-27G20H0-C-83V13C WARM WHITE LED ARRAY Bridgelux |
482 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2414lm (Typ) | 500mA | 25°C | 33.4V | 145 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-27E2000-C-83V13C WARM WHITE LED ARRAY Bridgelux |
400 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2805lm (Typ) | 500mA | 25°C | 33.4V | 168 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-40G2000-C-83V13C NEUTRAL WHITE LED ARRAY Bridgelux |
380 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2559lm (Typ) | 500mA | 25°C | 33.4V | 153 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-30G2000-C-83V13C WARM WHITE LED ARRAY Bridgelux |
130 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2419lm (Typ) | 500mA | 25°C | 33.4V | 145 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-50E2001-C-83V13C COOL WHITE LED ARRAY Bridgelux |
999 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3103lm (Typ) | 500mA | 25°C | 33.4V | 186 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-57E2001-C-83V13C COOL WHITE LED ARRAY Bridgelux |
968 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 2980lm (Typ) | 500mA | 25°C | 33.4V | 178 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|

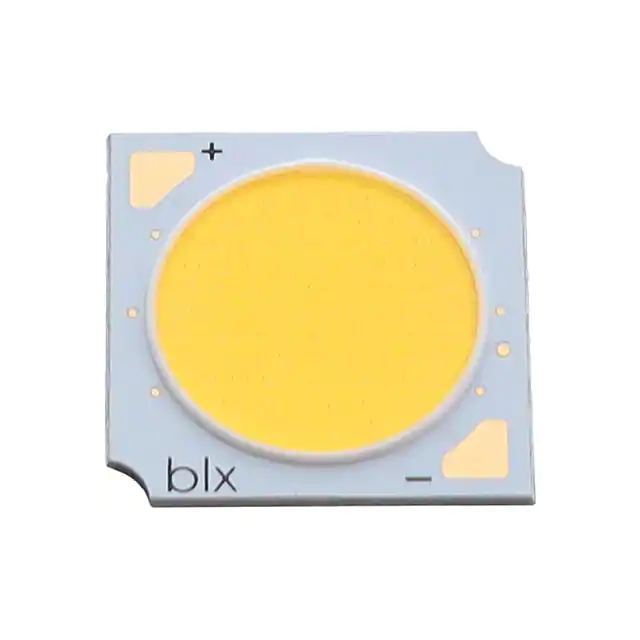

BXRE-65E2001-C-83V13C COOL WHITE LED ARRAY Bridgelux |
966 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3015lm (Typ) | 500mA | 25°C | 33.4V | 181 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
|
BXRE-50G2001-C-83V13C COOL WHITE LED ARRAY Bridgelux |
858 | - |
RFQ |
Технические |
Tube | Gen 8 V13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2682lm (Typ) | 500mA | 25°C | 33.4V | 161 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia |
|
BXRV-DR-1830G-0600-A-13-S2DW LED ARRAY, LES=6MM, INTEGRATE Bridgelux |
170 | - |
RFQ |
Технические |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 581lm (Typ) | 350mA | 25°C | 17V | 98 lm/W | 420mA | 90 | 110° | With Holder | 30.80mm Dia | 3.80mm | 7.10mm Dia |
|
BXRC-35E10K0-D-72LED COB VERO 29 3500K ROUND Bridgelux |
2,202 | - |
RFQ |
Технические |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 13013lm (Typ) | 2.1A | 25°C | 37.6V | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXEB-L0560Z-30E4000-C-D3EB GEN 3 HIGH OUTPUT LED MODULE Bridgelux |
174 | - |
RFQ |
Технические |
Bulk | EB Series™ Gen 3 | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4960lm | 1.4A | 25°C | 19.2V | 185 lm/W | 2.8A | 80 | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | |
|
BXRC-30E4000-F-23LED ARRAY 4000LM WARM WHITE COB Bridgelux |
1,343 | - |
RFQ |
Технические |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4097lm (Typ) | 1.05A | 25°C | 29.5V | 132 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|

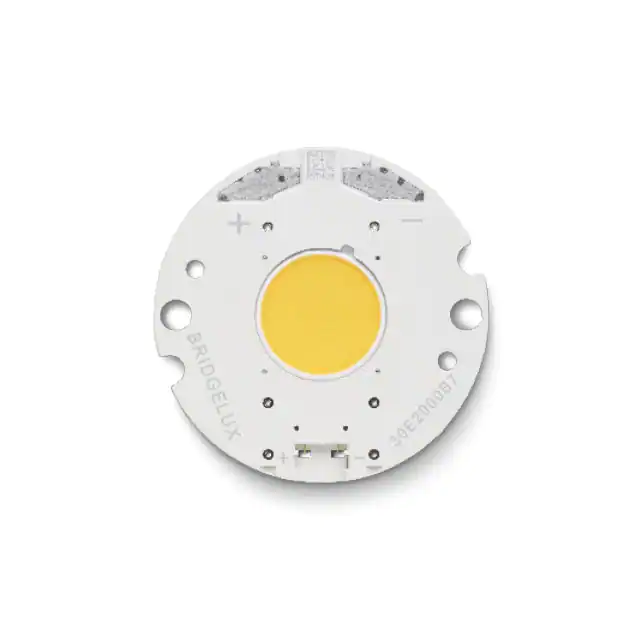

BXRC-40E2000-C-83VERO 13C NEUTRAL WHITE LED ARRAY Bridgelux |
200 | - |
RFQ |
Технические |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3068lm (Typ) | 500mA | 25°C | 33.4V | 184 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
|

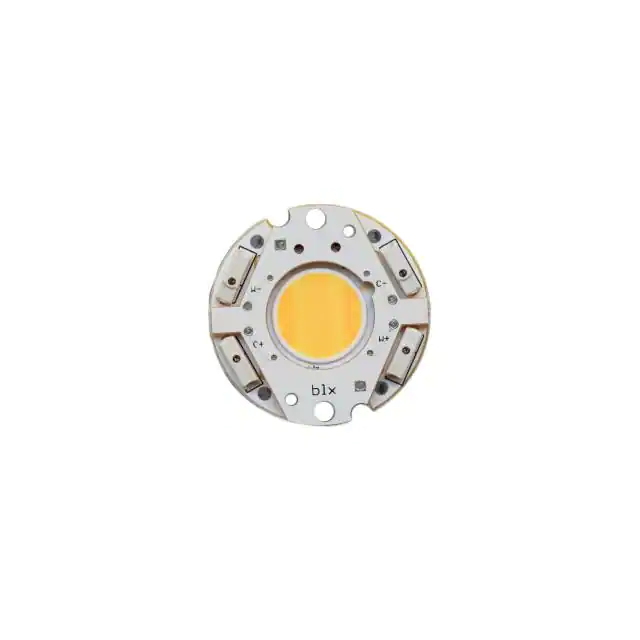

BXRV-TR-1840G-10A0-A-25-S2TW LED ARRAY, LES=9MM, VF=18V, I Bridgelux |
348 | - |
RFQ |
Технические |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Neutral | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse | - | Square | 573lm Warm White, 996lm Neutral White | 500mA | 25°C | 17.6V Warm White, 18V Neutral White | 96 lm/W Warm White, 118 lm/W Neutral White | 700mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
BXRV-TR-2765G-10A0-B-23-S2TW LED ARRAY, LES=9MM, VF=36V, I Bridgelux |
253 | - |
RFQ |
Технические |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 891lm Warm White, 1071lm Cool White | 250mA | 25°C | 34.8V Warm White, 34.8V Cool White | 112 lm/W Warm White, 137 lm/W Cool White | 480mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
BXEB-TL-L0560Z-2750S2000-B-C3VESTA TL GEN 3 (1 SMD ROW) LED M Bridgelux |
104 | - |
RFQ |
Технические |
Bulk | Vesta™ Tunable Linear Gen 3 | Active | LED Module | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Linear Light Strip | 1480lm Warm White, 1680lm Cool White | 600mA | 25°C | 20.3V | 122 lm/W Warm White, 138 lm/W Cool White | 1.5A | 98 | - | - | 560.00mm L x 24.00mm W | 5.60mm | - |
|
BXRE-30E4000-C-83V18C WARM WHITE LED ARRAY Bridgelux |
600 | - |
RFQ |
Технические |
Tube | Gen 8 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia |
