LED освещение - COB, Двигатели, Модули, Ленты
| Фото: | Мфр. Часть # | Доступность | Цена | Количество | Технические | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

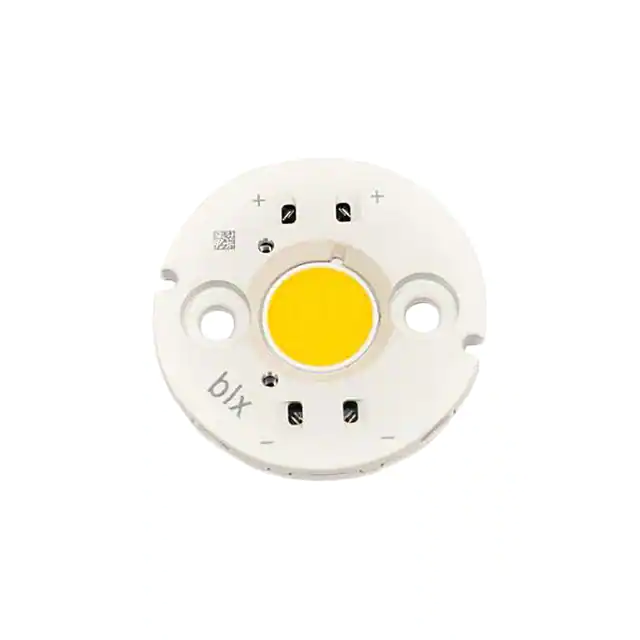

BXRC-30G1000-D-73-SELED COB VERO SE 3000K ROUND Bridgelux |
502 | - |
RFQ |
Технические |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1024lm (Typ) | 350mA | 85°C | 25.3V | 116 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-40E1000-D-73-SELED COB VERO SE 4000K ROUND Bridgelux |
269 | - |
RFQ |
Технические |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1278lm (Typ) | 350mA | 85°C | 25.3V | 144 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|

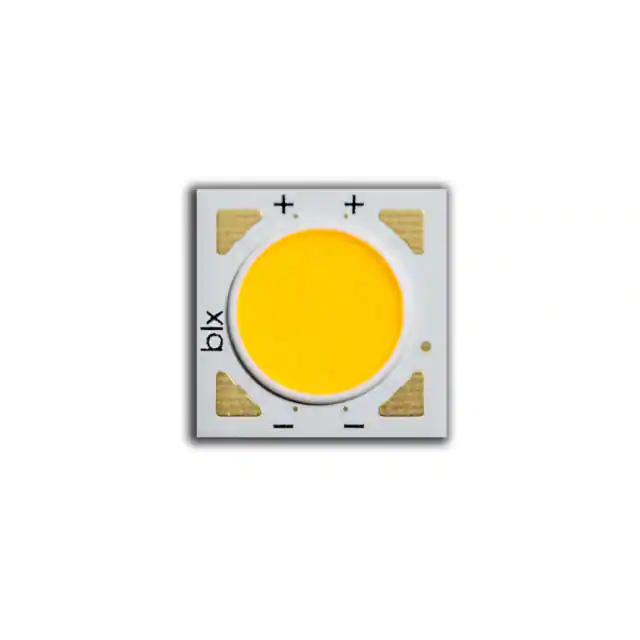

BXRE-50C0801-D-84V8D COOL WHITE LED ARRAY Bridgelux |
567 | - |
RFQ |
Технические |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 953lm (Typ) | 300mA | 25°C | 16.8V | 189 lm/W | - | 70 | - | - | - | - | 8.00mm Dia |
|
BXRE-30E0800-D-83V8D WARM WHITE LED ARRAY Bridgelux |
435 | - |
RFQ |
Технические |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 880lm (Typ) | 300mA | 25°C | 16.8V | 175 lm/W | - | 80 | - | - | - | - | 8.00mm Dia |
|
|
BXRE-27G0800-D-83V8D WARM WHITE LED ARRAY Bridgelux |
140 | - |
RFQ |
Технические |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 138 lm/W | - | 90 | - | - | - | - | 8.00mm Dia |
|
BXRC-27G1000-B-73LED COB VERO 10 2700K STARBOARD Bridgelux |
2,212 | - |
RFQ |
Технические |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1161lm (Typ) | 270mA | 25°C | 34.8V | 124 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRH-40S1001-B-73LED COB WHITE Bridgelux |
364 | - |
RFQ |
Технические |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1338lm (Typ) | 350mA | 25°C | 36.4V | 105 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
BXRH-27S1001-B-73LED COB WHITE Bridgelux |
438 | - |
RFQ |
Технические |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1147lm (Typ) | 350mA | 25°C | 36.4V | 90 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRH-65S1001-G-74LED COB WHITE Bridgelux |
302 | - |
RFQ |
Технические |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1414lm (Typ) | 700mA | 25°C | 18.2V | 111 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRH-35S1001-G-73LED COB WHITE Bridgelux |
265 | - |
RFQ |
Технические |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1287lm (Typ) | 700mA | 25°C | 18.2V | 101 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
|
BXRH-57S1001-B-74LED COB WHITE Bridgelux |
121 | - |
RFQ |
Технические |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 350mA | 25°C | 36.4V | 110 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia |
|
BXRE-27S1001-C-73V10C THRIVE Bridgelux |
490 | - |
RFQ |
Технические |
Tube | Gen 7 V10 Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 1204lm (Typ) | 360mA | 85°C | 33.7V | 99 lm/W | 720mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia |
|
BXRE-50S0801-D-74LED COB WHITE Bridgelux |
2,401 | - |
RFQ |
Технические |
Tube | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 777lm (Typ) | 350mA | 25°C | 17.2V | 129 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
BXRE-40S0801-D-73LED COB WHITE Bridgelux |
170 | - |
RFQ |
Технические |
Tube | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 740lm (Typ) | 350mA | 25°C | 17.2V | 123 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
|
BXRE-65S0801-D-74LED COB WHITE Bridgelux |
183 | - |
RFQ |
Технические |
Tray | V8 Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 771lm (Typ) | 350mA | 25°C | 17.2V | 128 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia |
|
|
BXRC-40E1000-C-73LED COB VERO 10 4000K STARBOARD Bridgelux |
339 | - |
RFQ |
Технические |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 2013lm (Typ) | 360mA | 25°C | 34.8V | 161 lm/W | 720mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
|
BXRC-30G1000-C-73LED COB VERO 10 3000K STARBOARD Bridgelux |
171 | - |
RFQ |
Технические |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1613lm (Typ) | 360mA | 25°C | 34.8V | 129 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia |
|
BXRC-30G2000-B-73-SELED COB VERO SE 3000K ROUND Bridgelux |
2,903 | - |
RFQ |
Технические |
Tray | Vero® SE 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1771lm (Typ) | 450mA | 85°C | 34.1V | 115 lm/W | 900mA | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia |
|
BXRV-TR-2765G-10A0-B-23TW9 GEN 2 TUNABLE WHITE LED ARRA Bridgelux |
335 | - |
RFQ |
Технические |
Tray | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 1190lm | 250mA | 25°C | 36V | 137 lm/W | 480mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
|
|
BXRV-TR-2750G-10A0-B-23TW9 GEN 2 TUNABLE WHITE LED ARRA Bridgelux |
157 | - |
RFQ |
Технические |
Bulk | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Square | 1180lm | 250mA | 25°C | 34.8V | 136 lm/W | 480mA | 90 | 130° | - | 15.90mm L x 15.90mm W | 1.65mm | 10.00mm Dia |
