Больше категорий товаров

LED освещение - COB, Двигатели, Модули, Ленты

Мфр. Часть #	Доступность	Цена	Количество	Технические	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
LHC1-3090-1211CRSP LED COB CRISPWHT WARM WHT SQ Lumileds	3,482	-	RFQ		Tube	LUXEON CoB, CrispWhite	Obsolete	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	3750lm (Typ)	1.2A	85°C	35.5V	90 lm/W	2.4A	90	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia

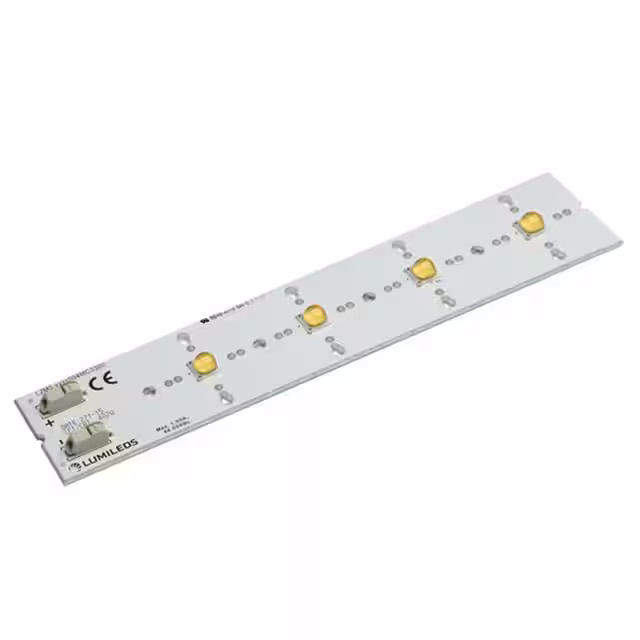

L2M0-5770004MC3300 LED XR-M 5700K 4-UP LINEAR Lumileds	3,336	-	RFQ	Технические	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5700K	-	Linear Light Strip	4318lm (Typ)	700mA	85°C	43.8V	141 lm/W	1.05A	70	-	-	165.00mm L x 33.00mm W	6.21mm	-
L2M0-4070004MC2200 LED XR-M 4000K 4-UP SQUARE Lumileds	3,673	-	RFQ	Технические	Tray	LUXEON XR-M	Obsolete	LED Module	White, Neutral	4000K	-	Square	4211lm (Typ)	700mA	85°C	43.8V	137 lm/W	1.05A	70	-	-	73.00mm L x 73.00mm W	6.21mm	-
L2M0-5070004MC2200 LED XR-M 5000K 4-UP SQUARE Lumileds	3,468	-	RFQ	Технические	Tray	LUXEON XR-M	Obsolete	LED Module	White, Cool	5000K	-	Square	4363lm (Typ)	700mA	85°C	43.8V	142 lm/W	1.05A	70	-	-	73.00mm L x 73.00mm W	6.21mm	-

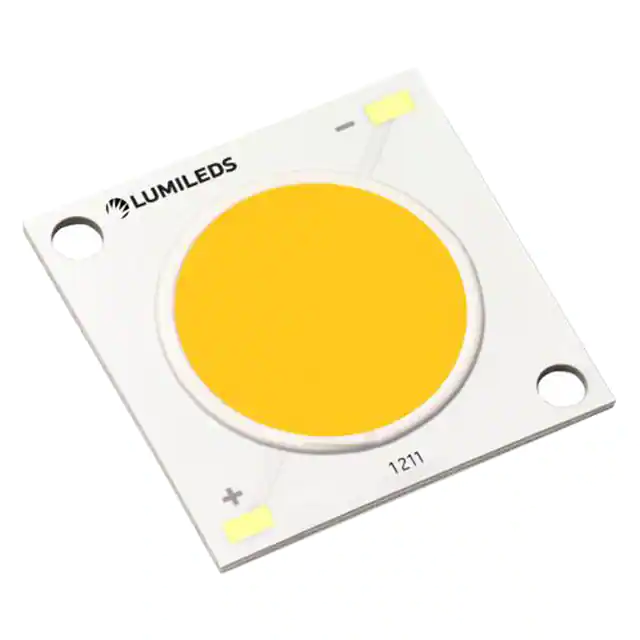

L2C2-35801211E1900 LED COB 1211 3500K WW 80CRI SMD Lumileds	3,325	-	RFQ	Технические	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	5616lm (Typ)	1.2A	85°C	35V	134 lm/W	2.4A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia
L2C5-35901211E1900 LED COB CORE RANGE GEN3 WW SQ Lumileds	3,053	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	5218lm (Typ)	1.2A	85°C	34.8V	125 lm/W	2.4A	90	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia
L2C2-22901216E2300 LED COB CORE RANGE WARM WHITE Lumileds	2,372	-	RFQ	Технические	Tube	LUXEON CoB Core Range	Obsolete	Chip On Board (COB)	White, Warm	2200K 3-Step MacAdam Ellipse	-	Square	5210lm (Typ)	1.6A	85°C	35V	93 lm/W	3.2A	90	115°	-	28.00mm L x 28.00mm W	1.50mm	23.00mm Dia
L2C5-30901203E09C0 LED COB LUXEON WHITE 3000K SQ Lumileds	3,095	-	RFQ	Технические	Tube	LUXEON CoB, CrispWhite Gen 2	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Rectangle	1006lm (Typ)	300mA	85°C	35V	96 lm/W	-	90	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia
L2C5-40701211E1900 LED COB CORE RANGE GEN3 NW SQ Lumileds	3,670	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	6726lm (Typ)	1.2A	85°C	34.8V	161 lm/W	2.4A	70	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia
L2C5-40801211E1900 LED COB CORE RANGE GEN3 NW SQ Lumileds	3,279	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	6238lm (Typ)	1.2A	85°C	34.8V	149 lm/W	2.4A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia

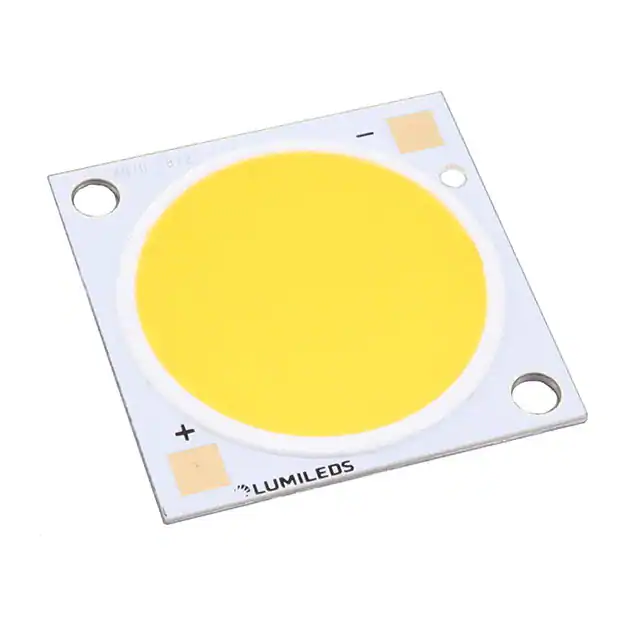

L2C5-30801812G2300 LUXEON COB HIGH LUMEN EXTENSION Lumileds	2,415	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	8536lm (Typ)	1.2A	85°C	51.7V	138 lm/W	2.4A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	23.00mm Dia
L2C5-30901204E0900 LED COB WARM WHT 3000K RECTANGLE Lumileds	2,542	-	RFQ	Технические	Tube	LUXEON CoB Core Range	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Rectangle	2378lm (Typ)	700mA	85°C	37V	92 lm/W	1.35A	90	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia
L2C5-27901204E0900 LED COB WARM WHT 2700K RECTANGLE Lumileds	2,702	-	RFQ	Технические	Tube	LUXEON CoB Core Range	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	2320lm (Typ)	700mA	85°C	37V	90 lm/W	1.35A	90	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia
L2C5-40801204E1300 LED COB CORE RANGE GEN3 NW RECT Lumileds	3,422	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Rectangle	2332lm (Typ)	450mA	85°C	34.8V	149 lm/W	900mA	80	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia
L2C5-40801321E2900 LUXEON COB HIGH LUMEN EXTENSION Lumileds	2,211	-	RFQ	Технические	Tube	LUXEON CoB Core Range Gen 3	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	11788lm (Typ)	2.1A	85°C	37.5V	150 lm/W	4.1A	80	115°	-	38.00mm L x 38.00mm W	1.50mm	29.20mm Dia
L2C4-50803S01F0600 LED COB S01 COOL WHT 80 CRI 3 SD Lumileds	3,977	-	RFQ	Технические	Tray	LUXEON CX Plus CoB Gen 2	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	522lm (Typ)	100mA	85°C	34.5V	151 lm/W	250mA	80	115°	-	13.35mm L x 13.35mm W	1.50mm	6.00mm Dia
L2C4-35803S01F0600 LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds	3,392	-	RFQ	Технические	Tray	LUXEON CX Plus CoB Gen 2	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	513lm (Typ)	100mA	85°C	34.5V	149 lm/W	250mA	80	115°	-	13.35mm L x 13.35mm W	1.50mm	6.00mm Dia
L2C4-30803S01F0600 LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds	3,031	-	RFQ	Технические	Tray	LUXEON CX Plus CoB Gen 2	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	495lm (Typ)	100mA	85°C	34.5V	143 lm/W	250mA	80	115°	-	13.35mm L x 13.35mm W	1.50mm	6.00mm Dia
L2C4-40803S01F0600 LED COB S01 NEU WHT 80 CRI 3 SDC Lumileds	2,979	-	RFQ	Технические	Tray	LUXEON CX Plus CoB Gen 2	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	522lm (Typ)	100mA	85°C	34.5V	151 lm/W	250mA	80	115°	-	13.35mm L x 13.35mm W	1.50mm	6.00mm Dia
L2C4-27803S01F0600 LED COB S01 WM WHT 80 CRI 3 SDCM Lumileds	3,803	-	RFQ	Технические	Tray	LUXEON CX Plus CoB Gen 2	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	477lm (Typ)	100mA	85°C	34.5V	138 lm/W	250mA	80	115°	-	13.35mm L x 13.35mm W	1.50mm	6.00mm Dia
