Трансформаторы для импульсных преобразователей, SMPS
| Фото: | Мфр. Часть # | Доступность | Цена | Количество | Технические | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

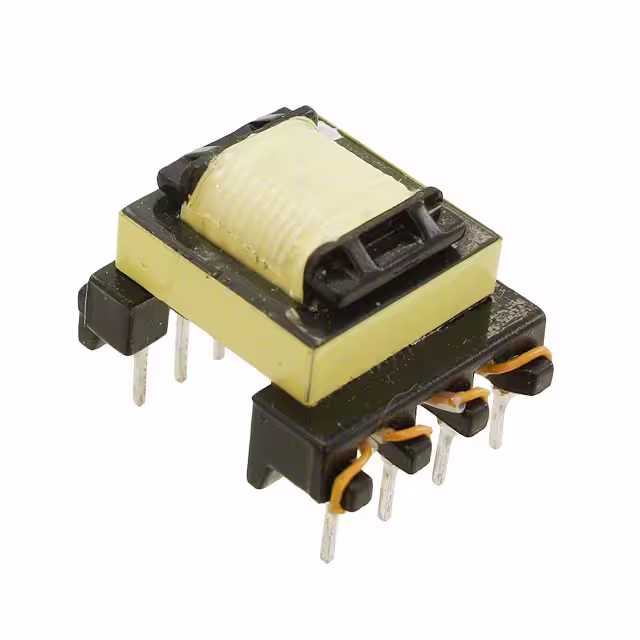

7491182112TRANSFORMER OFF LINE 4000V Würth Elektronik |
2,061 | - |
RFQ |
Технические |
Tray | WE-UNIT | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | Through Hole | 0.795 L x 0.965 W (20.20mm x 24.50mm) | 0.650 (16.50mm) | 0.795 L x 0.965 W (20.20mm x 24.50mm) |
|
750319021WE-POE POWER-OVER-ETHERNET TRANS Würth Elektronik |
100 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | MID-POE | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 22µH @ 10kHz | 250kHz | -40°C ~ 125°C | Surface Mount | 1.102 L x 1.064 W (28.00mm x 27.03mm) | 0.550 (13.97mm) | 1.278 L x 1.064 W (32.45mm x 27.03mm) |
|
7508112514OFFLINE TRANSFORMER WE-UNIT Würth Elektronik |
2,494 | - |
RFQ |
Технические |
Tray | MID-OLEFD | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 460µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | Through Hole | - | 0.551 (14.00mm) | - |
|
|
7508116314OFFLINE TRANSFORMER WE-UNIT Würth Elektronik |
2,476 | - |
RFQ |
Технические |
Tray | MID-OLEFD | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 450µH @ 10kHz | 68 ~ 100kHz | -40°C ~ 125°C | Through Hole | - | 0.551 (14.00mm) | - |
.jpg)
|

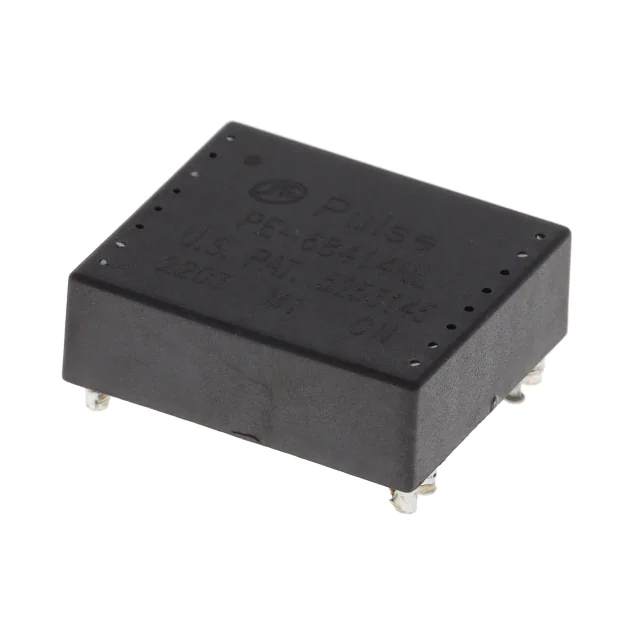

PE-68414NLXFRMR FLYBCK FOR 100KHZ SWITCHER Pulse Electronics Power |
3,558 | - |
RFQ |
Технические |
Tray | - | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | Surface Mount | 0.920 L x 1.040 W (23.37mm x 26.42mm) | 0.480 (12.19mm) | 0.920 L x 1.040 W (23.37mm x 26.42mm) |
|
ECO2425SEO-D06V014TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation |
2,835 | - |
RFQ |
Технические |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | Through Hole | 1.181 L x 1.024 W (30.00mm x 26.00mm) | 0.787 (20.00mm) | - |
|
|
ECO2425SEO-D05V014TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation |
2,670 | - |
RFQ |
Технические |
Bulk | ECO | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | Through Hole | 1.181 L x 1.024 W (30.00mm x 26.00mm) | 0.787 (20.00mm) | - |
|
PA2718NLXFMR FLYBACK CONV CONFIG T/H Pulse Electronics Power |
3,790 | - |
RFQ |
Технические |
Tray | - | Active | Configurable (For DC/DC) | Flyback Converters | - | - | 85 ~ 256V | - | 3000Vrms | - | 132kHz | -40°C ~ 130°C | Through Hole | 0.531 L x 0.768 W (13.50mm x 19.50mm) | 0.591 (15.00mm) | 0.531 L x 0.768 W (13.50mm x 19.50mm) |
|
PAD002-T764111SPUSH-PULL FUNC-INSULTN 5V 1:1.1 Bourns Inc. |
791 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | PAD00x-T764 | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3100Vrms | 475µH @ 100kHz | - | -40°C ~ 125°C | Surface Mount | 0.280 L x 0.258 W (7.10mm x 6.55mm) | 0.157 (3.99mm) | 0.388 L x 0.258 W (9.85mm x 6.55mm) |
|
PAD001-T764117SPUSH-PULL FUNC-INSULTN 3.3V 1:1. Bourns Inc. |
791 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | PAD00x-T764 | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3100Vrms | 475µH @ 100kHz | - | -40°C ~ 125°C | Surface Mount | 0.280 L x 0.258 W (7.10mm x 6.55mm) | 0.157 (3.99mm) | 0.388 L x 0.258 W (9.85mm x 6.55mm) |
|
PAD001-T764120SPUSH-PULL FUNC-INSULTN 3.3V 1:2 Bourns Inc. |
587 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | PAD00x-T764 | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3100Vrms | 475µH @ 100kHz | - | -40°C ~ 125°C | Surface Mount | 0.280 L x 0.258 W (7.10mm x 6.55mm) | 0.157 (3.99mm) | 0.388 L x 0.258 W (9.85mm x 6.55mm) |
|

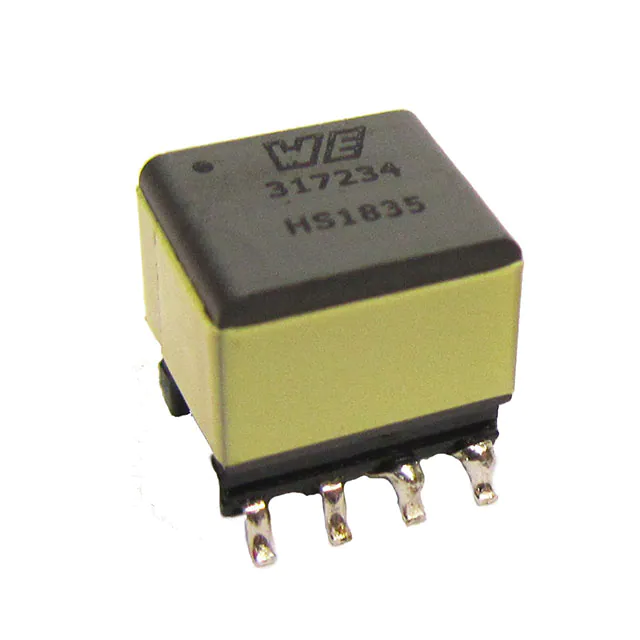

750317234FLYBACK TRANSFORMER EP7 SMT; UI Würth Elektronik |
284 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | Surface Mount | 0.385 L x 0.374 W (9.78mm x 9.50mm) | 0.415 (10.54mm) | 0.324 L x 0.360 W (8.23mm x 9.14mm) |
|
750317236FLYBACK TRANSFORMER EP7 SMT; UI Würth Elektronik |
220 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | Surface Mount | 0.385 L x 0.374 W (9.78mm x 9.50mm) | 0.415 (10.54mm) | 0.324 L x 0.360 W (8.23mm x 9.14mm) |
|

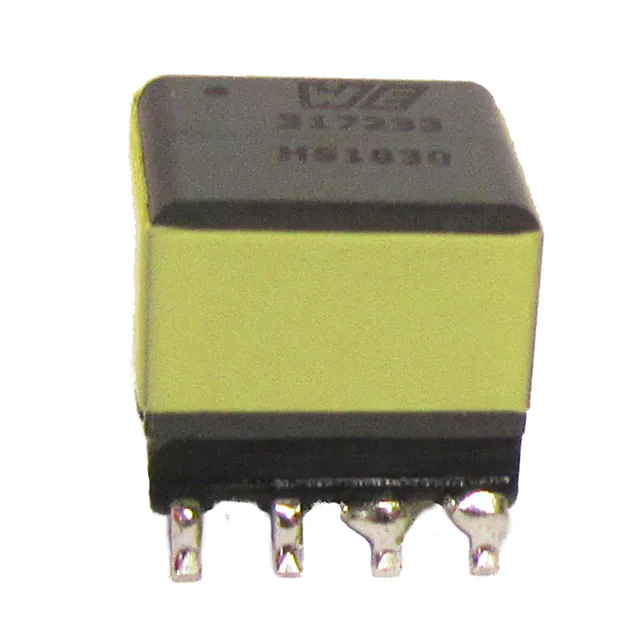

750317233FLYBACK TRANSFORMER EP7 SMT; UI Würth Elektronik |
2,362 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | Surface Mount | 0.385 L x 0.374 W (9.78mm x 9.50mm) | 0.415 (10.54mm) | 0.324 L x 0.360 W (8.23mm x 9.14mm) |
|
750317235FLYBACK TRANSFORMER EP7 SMT; UI Würth Elektronik |
3,821 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 8 ~ 28VDC | - | 1500Vrms | 16µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | Surface Mount | 0.385 L x 0.374 W (9.78mm x 9.50mm) | 0.415 (10.54mm) | 0.324 L x 0.360 W (8.23mm x 9.14mm) |
|
750315825FLYBACK TRANSFORMER WE-FB Würth Elektronik |
316 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 36 ~ 72V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | Surface Mount | - | - | - |
.00xNL-Series.jpg)
|
PA3856.003NLXFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power |
3,224 | - |
RFQ |
Технические |
Tray | - | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.695 W (14.50mm x 17.65mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
PA5100.002NLTTRANSFORMER, FORWARD, EP7 PLUS Pulse Electronics Power |
2,936 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | PA5100XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | Surface Mount | 0.535 L x 0.433 W (13.60mm x 11.00mm) | 0.610 (15.50mm) | |
|

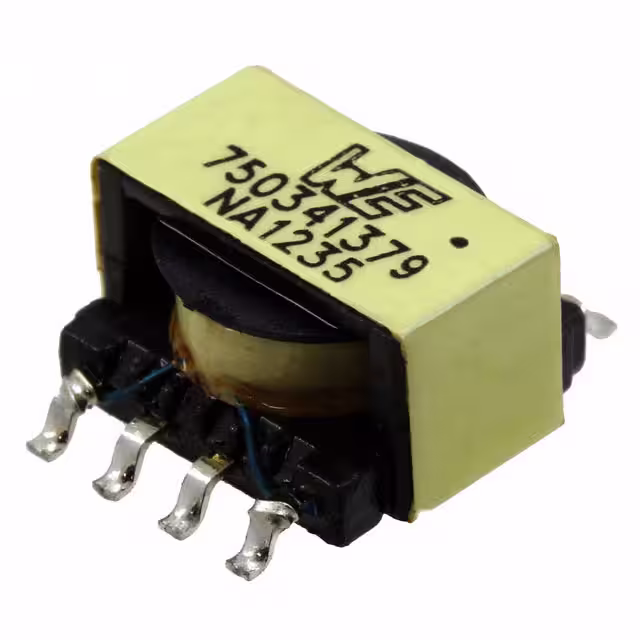

750341379POWER TRANSFORMER ADI ADP1051 Würth Elektronik |
3,480 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | WE-FB | Active | For DC/DC Converters | Flyback Converters | ADP1050, ADP1051 | Analog Devices, Inc | 36 ~ 75V | 12V @ 250mA | 1000VDC | 65µH @ 100kHz | - | -40°C ~ 125°C | Surface Mount | - | 0.240 (6.10mm) | 0.394 L x 0.475 W (10.00mm x 12.07mm) | |
|
750313975TRANS FLYBACK LT8301 Würth Elektronik |
2,691 | - |
RFQ |
Технические |
Tape & Reel (TR),Cut Tape (CT) | WE-FB, MID-FLYLT | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | Surface Mount | - | 0.450 (11.43mm) | 0.525 L x 0.600 W (13.34mm x 15.24mm) |
